February 01, 2026

  We are proud to announce the release of the TFC448, a cutting-edge Medium Power Amplifier (MPA) designed to meet the rigorous demands of next-generation millimeter-wave (mmWave) applications. Covering a continuous frequency range from 18 GHz to 40 GHz, the TFC448 is engineered for excellence in 5G infrastructure, satellite communications, and advanced radar systems.

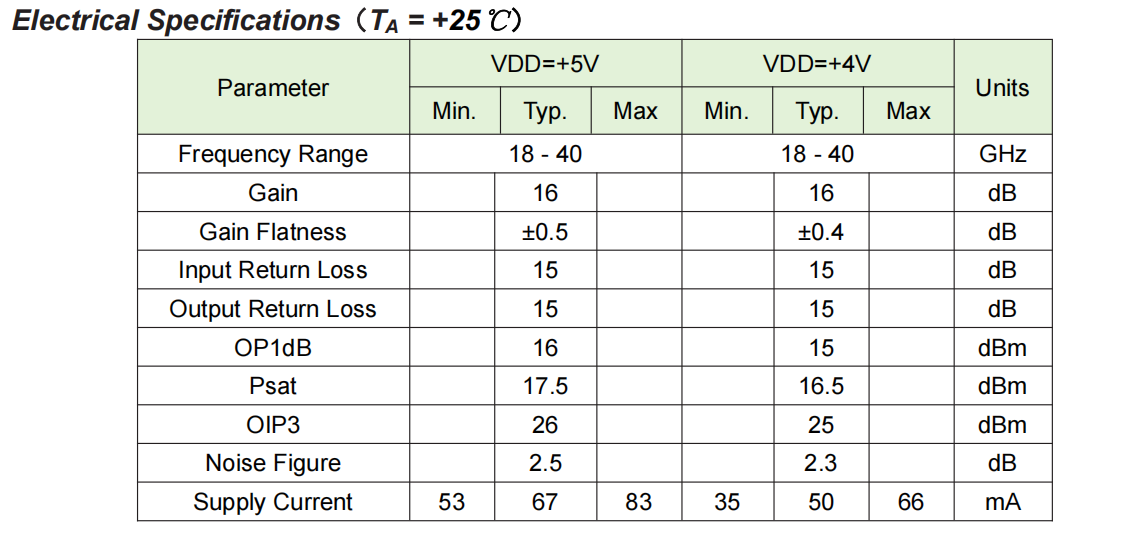

Key Technical Specifications:

• Frequency Range: 18 - 40 GHz

• Gain: 16 dB

• Noise Figure: 2.3 dB (@ +4V) to 2.5 dB (@ +5V)

• Output P1dB: Up to +16 dBm

• Saturated Power (Psat): Up to +17.5 dBm

• Operating Voltage: Flexible +4V to +5V DC

• Die Size：1.5 × 0.8 × 0.1 mm3

Please click here to download the datasheet: TFC448 Datasheet
